KEY FEATURES:

  • CPU
    Adopt 32-bit ARM dual-core, support Thumb/Thumb 2 instruction set, and the system clock is up to 600MHz
    256KB L2 cache
    32KB D cache and 32KB I cache

  • On-chip storage unit
    On-chip integration 32kb RAM
    On-chip integration 512Kbyte Embedded FLASH;
    Support Memory Protection Unit (MPU), FLASH and XRAM. Access is controlled by MPU permission, realizing secure access control and multi-purpose

  • Communication of peripheral
    1x100M MAC Connector

    UART Connector
    - 8x UART serial port

    9x SPI connector
    - Support Standard, Dual, Quad mode

    9x INNO SPI HUB connector
    3x I2C connector
  • Memory
    16bit DDR3/4 SDRAM, up to 1333MHz
    SPI Nor Flash
    1x SDIO/SDMMC
    NAND with ECC, up to 9bit per 512Bytes.

  • Algorithm
    64bit High speed hardware public key algorithm engine(RSA1024/RSA2048/ECC/SM2)
    SM1 algorithm
    SM3 algorithm
    SM4 algorithm
    DES algorithm
    AES algorithm
    CRC algorithm
    True random data generator
    INNO PUF ID

  • Safety Protection
    Temperature anomaly detection

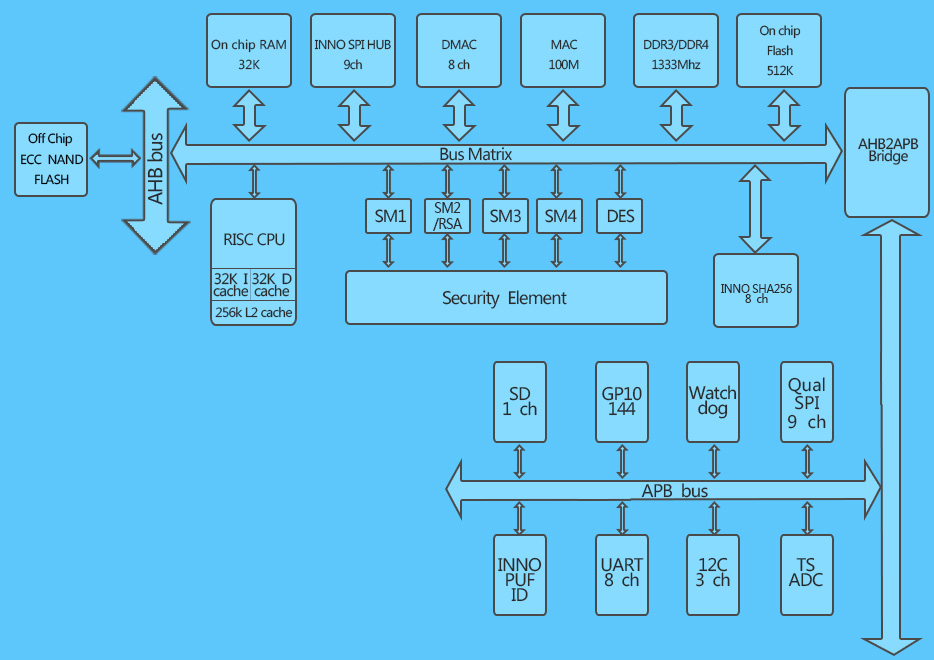

BLOCK DIAGRAM:
